MAGNUM Ideal Frost-Free Ribbon
Ideal Frost-Free Ribbon
In many situations, outdoor taps and pipes are shut off in winter to prevent freezing and damage. MAGNUM offers a much simpler solution: with MAGNUM Ideal frost-free ribbon, frozen and burst water pipes are definitely a thing of the past! The MAGNUM Ideal range has been specially designed to keep (water) pipes, taps, drains, etc. frost-free.

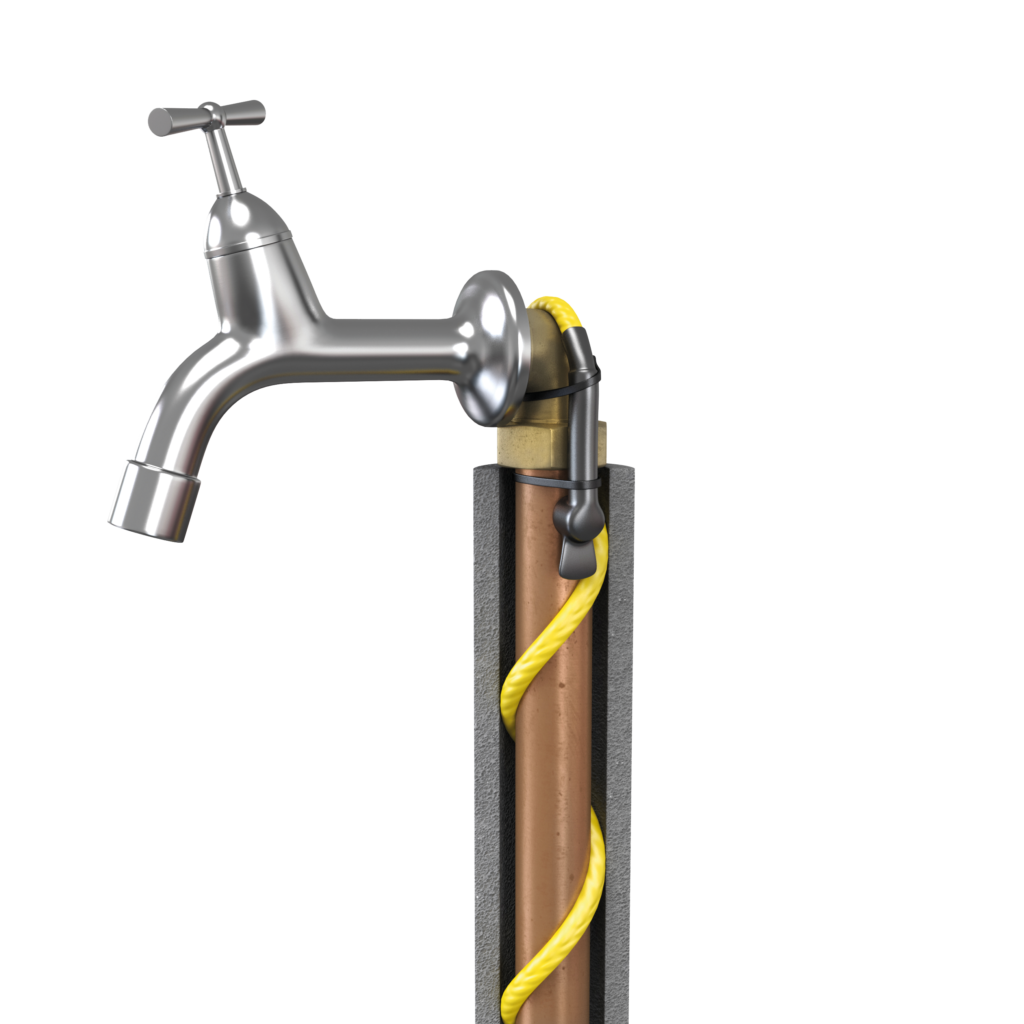

Freezing problems can easily be prevented by installing a frost-free ribbon, ready to plug in and with automatic thermostat, along the pipe. Then, fitted with pipe insulation, this application not only provides safety, but also prevents additional and unnecessary costs from water damage. When installed on plastic piping, it must first be completely wrapped in aluminium tape before the cable can be applied.
MAGNUM Ideal frost-free ribbons are ready to use (with a 2 metre long connecting cable and earthed plug) and equipped with temperature control through bi-metal. MAGNUM Ideal frost-free ribbons are available in lengths from 1 to 48 metres. The ribbon switches on at a temperature below +5°C and switches off automatically if the temperature of the pipe exceeds +13°C.
The heating ribbon must never be placed directly on a PVC pipe, the PVC pipe must first be covered with aluminium tape for proper heat conduction.
Installation methods
MAGNUM Ideal can be easily attached to the pipes using aluminium tape or plastic ties (tiewraps). When installed on plastic piping, it should first be completely wrapped with aluminium tape before the cable can be applied. MAGNUM Ideal should always be used in combination with (polyethylene) pipe insulation with a minimum wall thickness of 10 mm. This for optimal protection and insulation, so that an energy-efficient operation is guaranteed.
Package content
- Ready to switch heating cable with built-in, bi-metal thermostat.
- Installation instructions
- PVC-Tape
Art.nr. | Description | Length | Power | Volt |
155001 | MAGNUM Ideal frost-free ribbon | 1 m | 10 Watt | 230V |
155002 | MAGNUM Ideal frost-free ribbon | 2 m | 20 Watt | 230V |
155004 | MAGNUM Ideal frost-free ribbon | 4 m | 40 Watt | 230V |
155006 | MAGNUM Ideal frost-free ribbon | 6 m | 60 Watt | 230V |
155008 | MAGNUM Ideal frost-free ribbon | 8 m | 80 Watt | 230V |
155010 | MAGNUM Ideal frost-free ribbon | 10 m | 100 Watt | 230V |
155014 | MAGNUM Ideal frost-free ribbon | 14 m | 140 Watt | 230V |
155018 | MAGNUM Ideal frost-free ribbon | 18 m | 180 Watt | 230V |
155022 | MAGNUM Ideal frost-free ribbon | 22 m | 220 Watt | 230V |
155026 | MAGNUM Ideal frost-free ribbon | 26 m | 260 Watt | 230V |
155030 | MAGNUM Ideal frost-free ribbon | 30 m | 300 Watt | 230V |
155034 | MAGNUM Ideal frost-free ribbon | 34 m | 340 Watt | 230V |
155040 | MAGNUM Ideal frost-free ribbon | 40 m | 400 Watt | 230V |
155048 | MAGNUM Ideal frost-free ribbon | 48 m | 480 Watt | 230V |
Art.nr. | Length | Power | Volt |
155001 | 1 m | 10 Watt | 230V |
155002 | 2 m | 20 Watt | 230V |
155004 | 4 m | 40 Watt | 230V |
155006 | 6 m | 60 Watt | 230V |
155008 | 8 m | 80 Watt | 230V |
155010 | 10 m | 100 Watt | 230V |
155014 | 14 m | 140 Watt | 230V |
155018 | 18 m | 180 Watt | 230V |
155022 | 22 m | 220 Watt | 230V |
155026 | 26 m | 260 Watt | 230V |
155030 | 30 m | 300 Watt | 230V |
155034 | 34 m | 340 Watt | 230V |
155040 | 40 m | 400 Watt | 230V |
155048 | 48 m | 480 Watt | 230V |
Specificaties
System type | Outdoor |
Dimensions | 1 m to 48 m |
Power | 10 Watt per metre |
Connection voltage | 230 V/50Hz |
Certification | VDE, CE, IPX7 |
Warranty | 2 year |
Tehnički detalji
- Power 10 Watt per metre length / 230V
- Connection cable 2 metres with earthed plug
- Class IPX7
Warranty
MAGNUM Ideal frost-free ribbon has a 2 year guarantee on the electrical function ribbon.
