Outdoor Cable Asphalt


MAGNUM Outdoor Cable Asfalt

Especially for installation in asphalt

Installation in unrolled asphalt

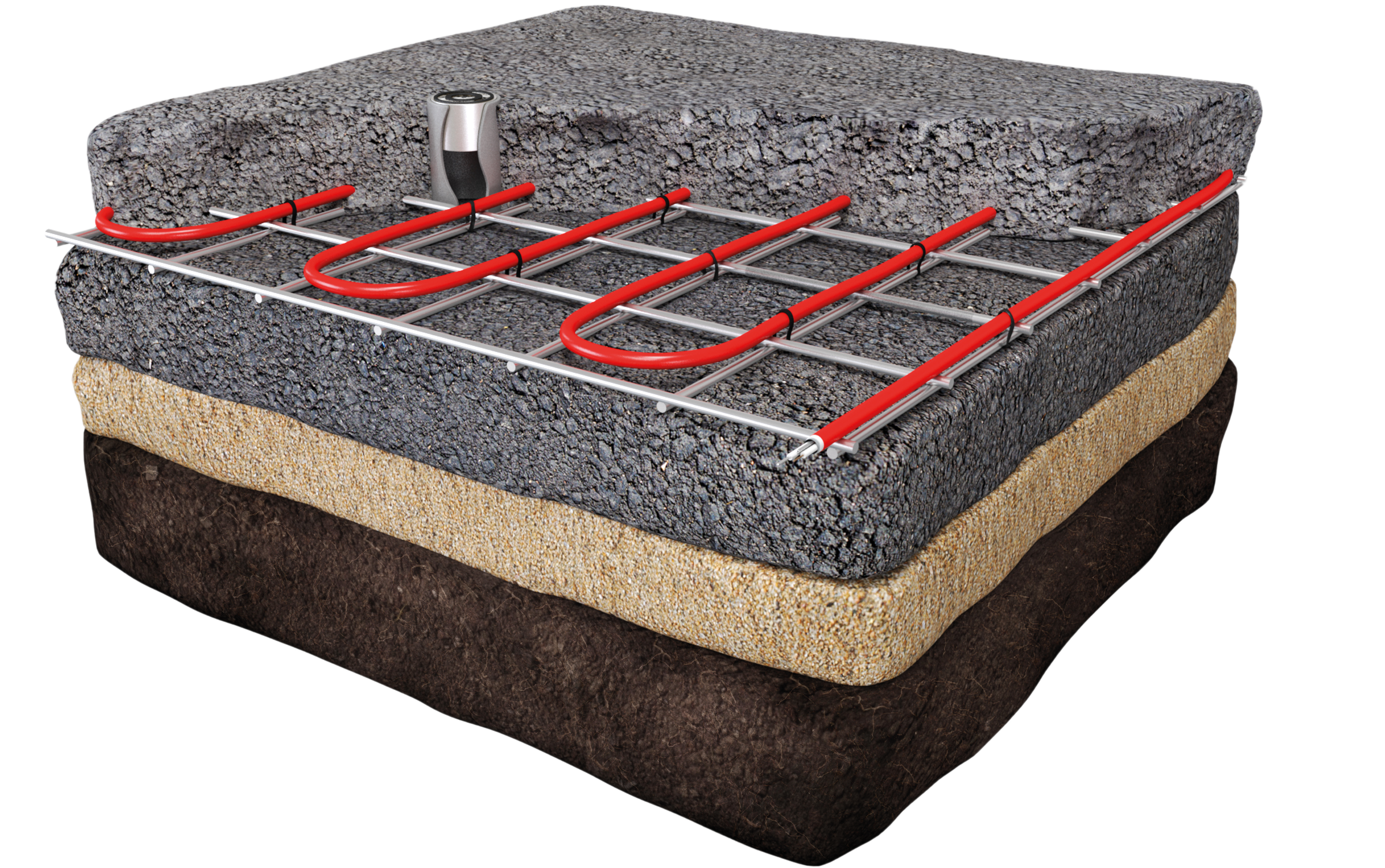

Especially for large areas, such as loading docks or driveways for car parks, where safety must be ensured. MAGNUM Outdoor Cable can be fixed directly to the reinforcement before the sand bed, concrete or asphalt is poured.

MAGNUM Outdoor is a highly advanced system of heating cables, 2 sensor units that measure humidity in combination with the outdoor temperature and a custom-made control cabinet.

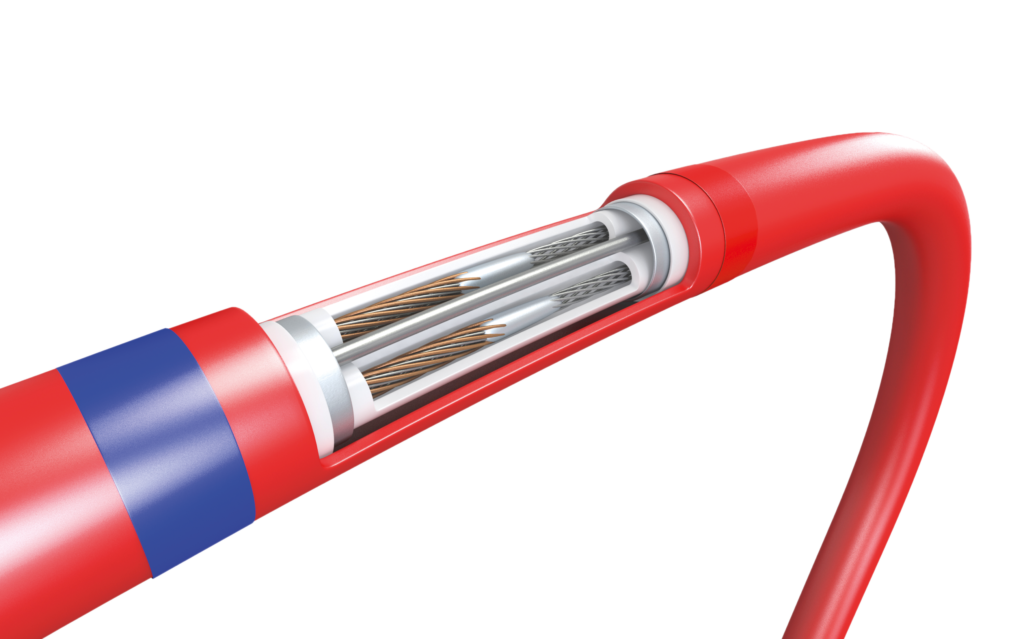

The power supply cable is uniquely connected to the resistance wire. The aluminium reinforcement jacket protects the resistance wires against mechanical damage and shields the cable against EMC (electromagnetic radiation). This has the advantage that the cable does not interfere with mobile phones, electrically operated garage doors and gates, security installations etc.

The cable is equipped with PTFE (Teflon) inner sheaths and a PVC outer sheath that is resistant to the action of chemicals.

Complete systems

MAGNUM Outdoor installations are specially drawn and designed per order. A complete watertight control cabinet (IP-65) is manufactured and fitted out in proportion to the number of cables/mats and power. For larger projects, the control cabinet can be expanded to include modulating power regulators up to 50kW that prevent peak loads and also save energy. The system can be implemented in both 230V and 400V.

Installation methods (complete systems)

MAGNUM Outdoor systems are calculated and designed per order.

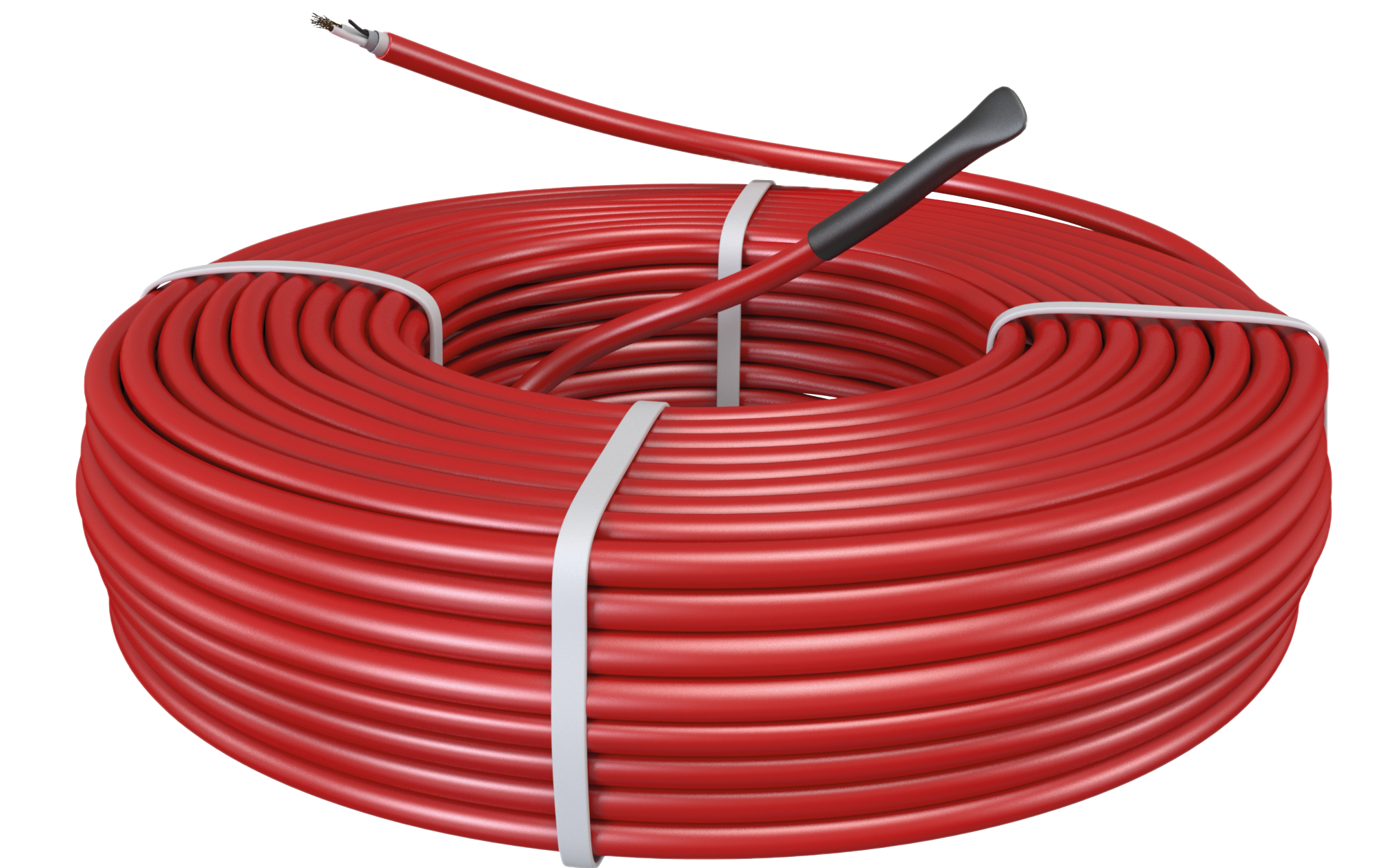

MAGNUM Outdoor Cable Asphalt 30W/m1

Art.nr. LengthLength connecting wirePowerVoltAmpsOhm
12500620 m10 m600 Watt230V2,688,2
12501240 m10 m1200 Watt230V5,244,1
12501963,3 m10 m1900 Watt230V8,327,8
125034113,3 m10 m3400 Watt230V14,815,6


Sand bed + bricksV
Cold asphaltV unrolled processing!
Asphalt < 240oCV unrolled processing!
Inner jacketPFTE (Teflon)
Outer jacketPVC
Length of connecting wire10 m
Power30 Watt/m1
Connection voltage230 V/50Hz
CertificationIEC 800, CE, IPX7, VDE
Warranty10 year

Technical details

  • Power 30 Watt/m1
  • Cables available from 600 to 3400 Watt
  • Connection voltage 230 V/50Hz
  • Standards IEC 800 and CE
  • Certification ISO 9001
  • Class IPX7
  • Core insulation PTFE (Teflon)
  • Suitable for unrolled mastic asphalt up to 240°C

Installation methods (complete systems)
MAGNUM Outdoor systems are calculated and designed per order.

MAGNUM Outdoor Cable has a 10 year warranty on the electrical function of the cable.
